NEW. PRE-LISTING Ultra-Wide Band Linear Pol UWB 2.1GHz - 10GHz Dish Parabolic Mesh 3 FT 90cm Antenna (Copy)
NEW. PRE-LISTING. Details to be added. Extremely directional high gain parabolic antenna with single linear polarization feed horn. Ultra-Wide band UWB continuous, Covers all of the S-band, C-Band, half the X-band Instantaneous bandwidth.. A first in the industry for an UWB affordable dish antenna.
Excellent Signals Intelligence, spectrum scan operations, UAV (drone) jamming and or tracking. Plus terrestrial cellular data links or home user cellular repeaters and boosters, Hotspot modems or WiFi links including the latest 6 and 7Ghz WiFi. Amazing number of uses including all the ham radio bands in this range, 2402, 3456, 5700 and 10.4 GHz.
This antenna also works for all popular and expanded WiFi bands including 802.11ah 802.11b 802.11g 802.11n 802.11ax 802.11y 802.11j 802.11a 802.11h 802.11ac 802.11p 802.11be Wifi-6E WiFi 7

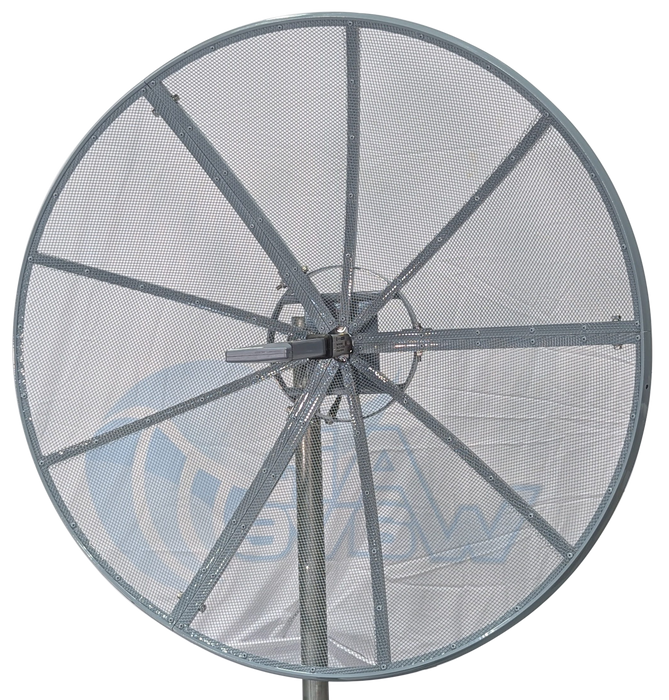

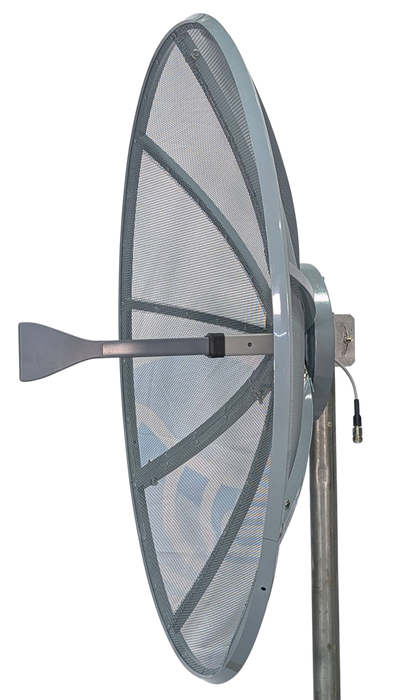

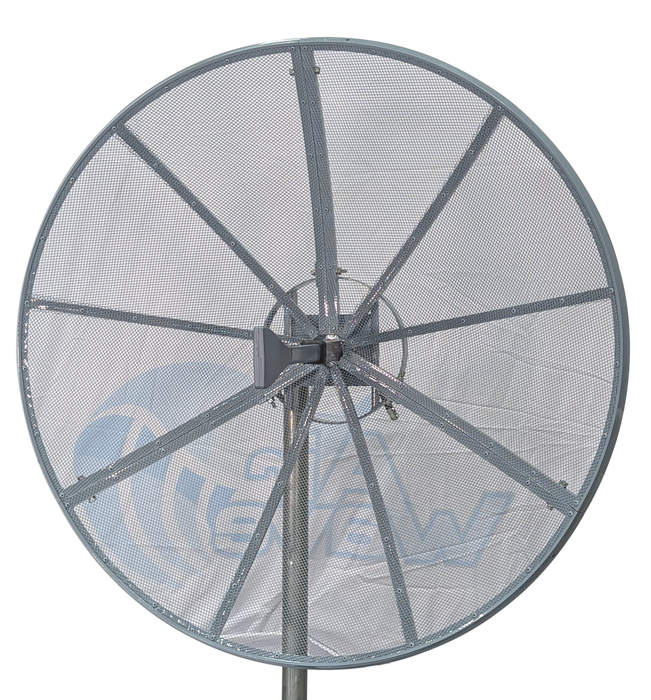

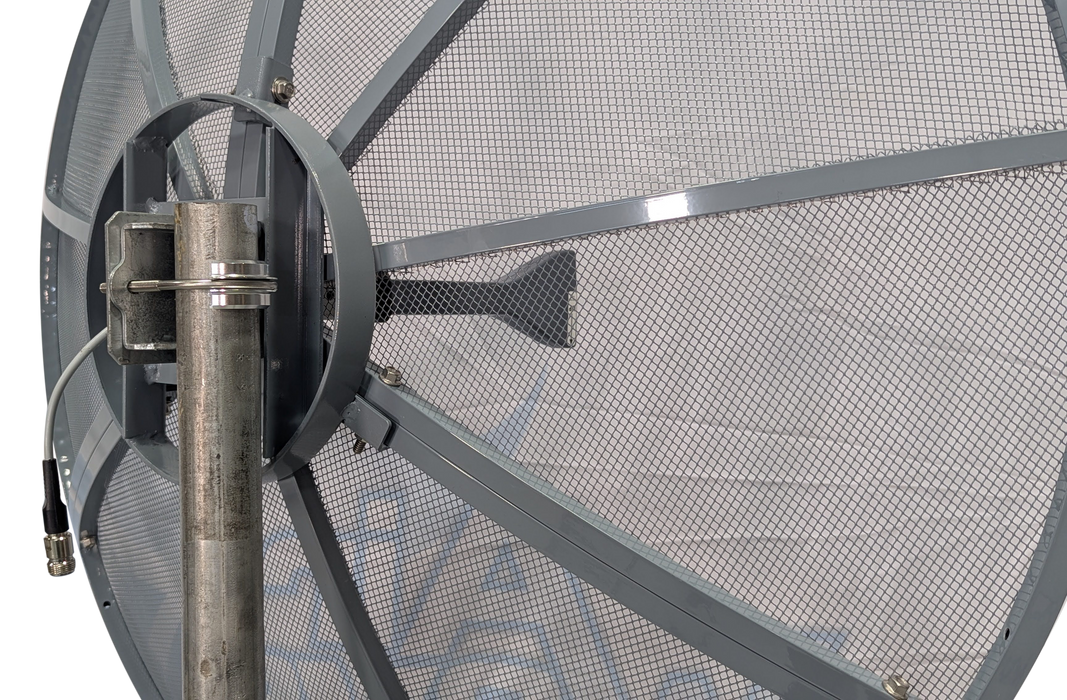

Feed horn is comprised of a printed LPDA optimized for its holder and housing/radome. The feed horn arm is set for best average 4 GHz ranges. However 1 inch inwards helps 1.5 dBi the 2.4GHz band. Pulling it out 1 inch helps the 6GHz range.
This antenna was designed with low-cost shipping in mind. The 3 petals and other parts fit a compact 22x22x8" box. It assembles in 15-25 minutes, and it is ready to work. The super sturdy and lightweight dish can be left installed all year.
Designed and produced by Antenna World, Inc, It's covered by 1 US patent.
Mesh aluminum reflector is made of square 3.5mm holes. (3.5x3.5mm) Excellent tradeoff for wind-load reduction and reflector efficiency.
Electrical specifications:
Frequency range (MHZ) 2100 - 10500 (2.1 -10.5 GHz) S-band, C-Band, half the X-band Instantaneous bandwidth.
Polarization + - 45° (90° V or H)
Polarization: Linear L and/or R, Circular L and/or R, using 90° Hybrid Coupler Not Included
Gain(dBi) 22 Low / 24 Mid / 29 High Bands, 37+ dBi @10.4GHz (est)
Half-power beam width(°) Low Band: 14 – 22 V & H
Half-power beam width(°) Mid Band: 7 - 9 V & H
Half-power beam width(°) High Band: 3 - 5 V & H
Front-to-back ratio(dB) ≥25 AVG
Impedance(Ω) 50
VSWR ≤1.6:1 / 1.4:1 avg
Maximum input power(W) 50-200 Freq Dependent
Lightning protection DC Ground
Mechanical specifications

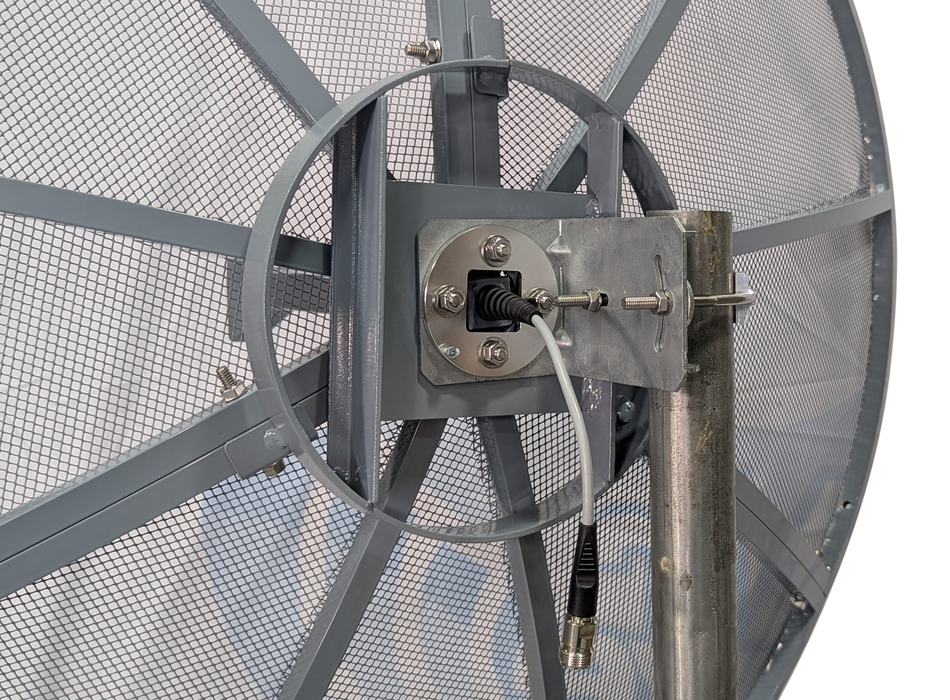

Connectors 1x N-female
Dimensions (in / mm) 36 / 90cm
Dimensions, boxed (in / mm) 22x22x8 / 66x66x20
Antenna weight (lb / kg) 10 / 4.9 w/bracket
Packing weight (lb / kg) 14 / 6.8
Wind loading area (sqr ft / m) (data not yet detrmined)
Rated wind velocity (mph / kph) 150 / 240
Wind Load @ Rated Velo. (lb / kg)

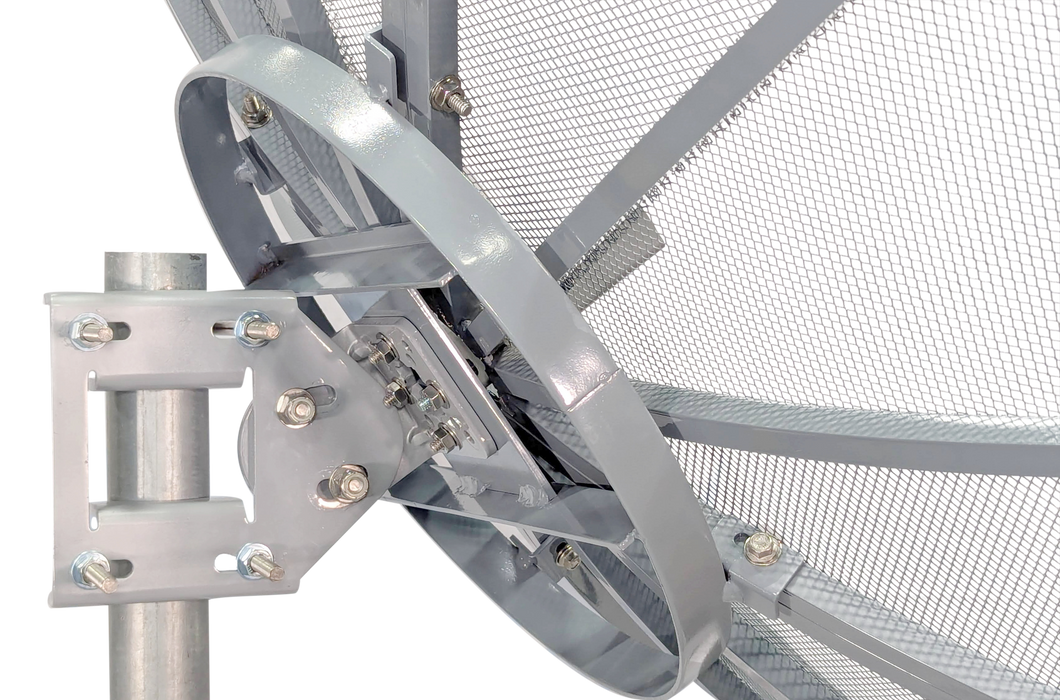

Mounting mast diam. (in / mm) 1.5-2.8 / 38 - 70
Reflector material Aluminum 3.5x3.5mm square Mesh
Reflector Finish: Electrostatic Powder Coat
Radome material: molded ASA Anti UV
Antenna Reflector color Gray
Water resistance IPX Weather rated.
Operating temperature (℃ / F) -40 to +60 / -40 to +140
