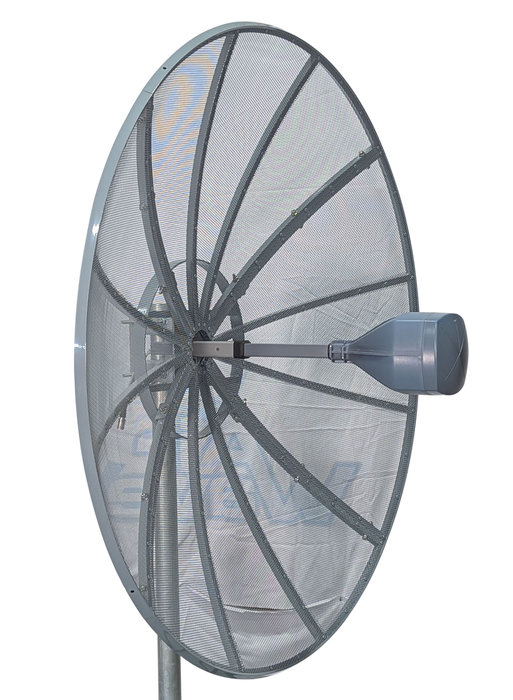

Ultra Wide Band Dual Circular Pol UWB 600MHz - 10GHz Dish Parabolic Mesh 4 FT 120cm Antenna

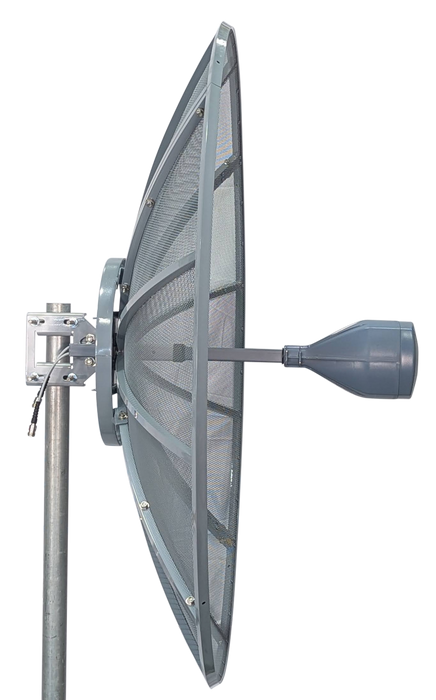

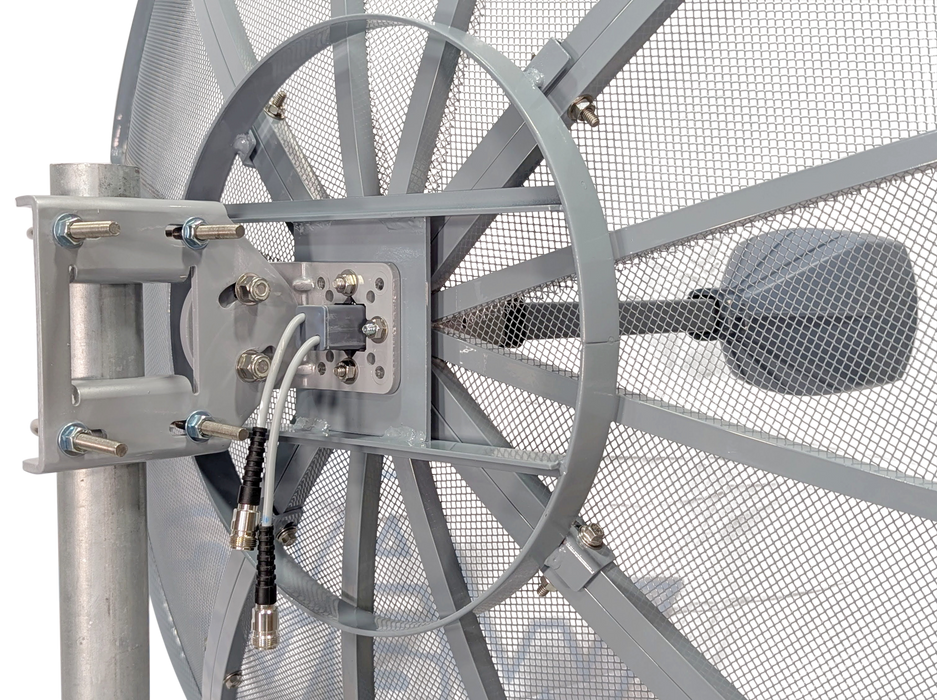

Extremely directional high gain parabolic antenna with a dual polarization feed horn. Ultra-Wide band UWB continuous, Covers all of the L-band, S-band, C-Band, half the X-band Instantaneous bandwidth. Instantaneous bandwidth. A first in the industry for an UWB affordable dish antenna. This feed horn can be used as cross-polarization single or dual, as well as single or dual circular polarization using a 90° hybrid coupler (not included)
Excellent for terrestrial cellular data links or home user cellular repeaters and boosters, Hotspot modems or WiFi links including the latest 6 and 7Ghz WiFi. Amazing number of uses including all the ham radio bands in this range, 902, 1296, 2402, 3456, 5700 and 10.4 GHz! Fantastic antenna for the Icom IC-905 radio.
This antenna also works for all popular and expanded WiFi bands including 802.11ah 802.11b 802.11g 802.11n 802.11ax 802.11y 802.11j 802.11a 802.11h 802.11ac 802.11p 802.11be Wifi-6E WiFi 7
Space signals at the 1.4 GHz ranges with amazing performance yet affordable cost. Featuring a patented high-power Vivaldi feed horn with in/out adjustment only needed to maximize 10GHz or 650 MHz areas. (Permits optimizing illumination of the reflector because of beamwidth variables of the feed horn at such extreme upper and lower frequency levels)
This antenna was designed with low-cost shipping in mind. The 4 petals and other parts fit a compact 26x26x12" box. It assembles in 20-30 minutes, and it is ready to work. The super sturdy and lightweight dish can be left installed all year.
Designed and produced by Antenna World, Inc, and W4AWI. It's covered by 3 patents. One of W4AWI and 2 licensed from the US Govt US Navy Space and Warfare Dept.

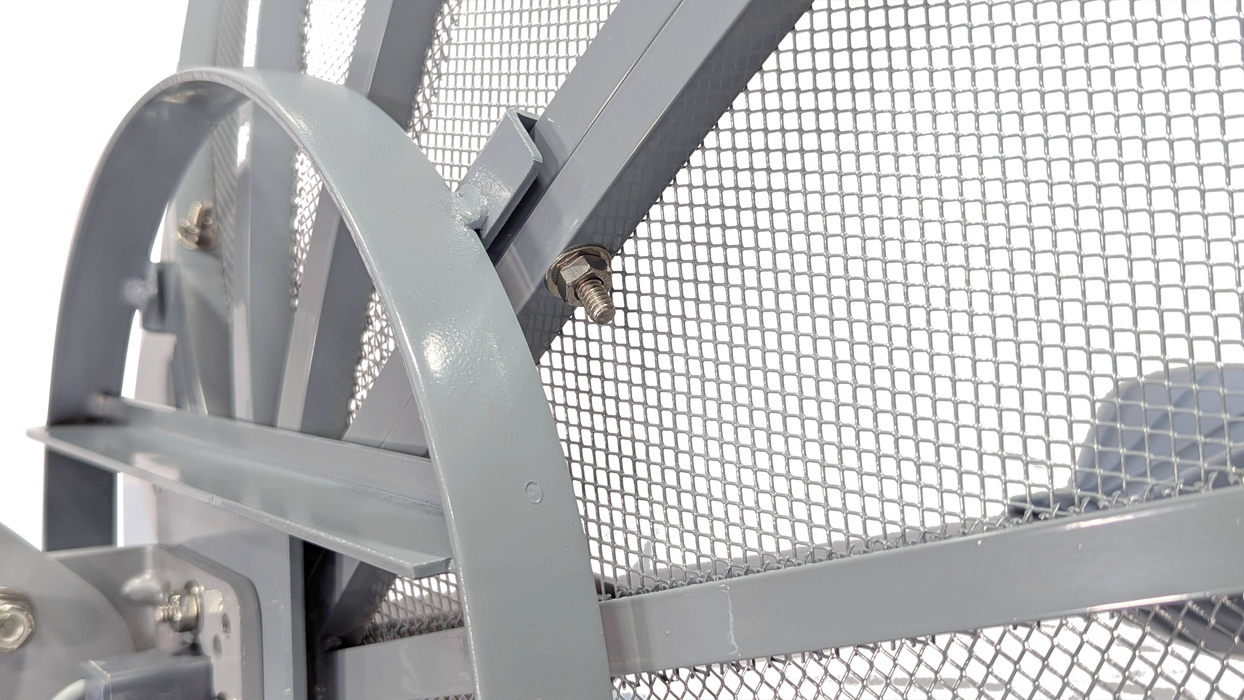

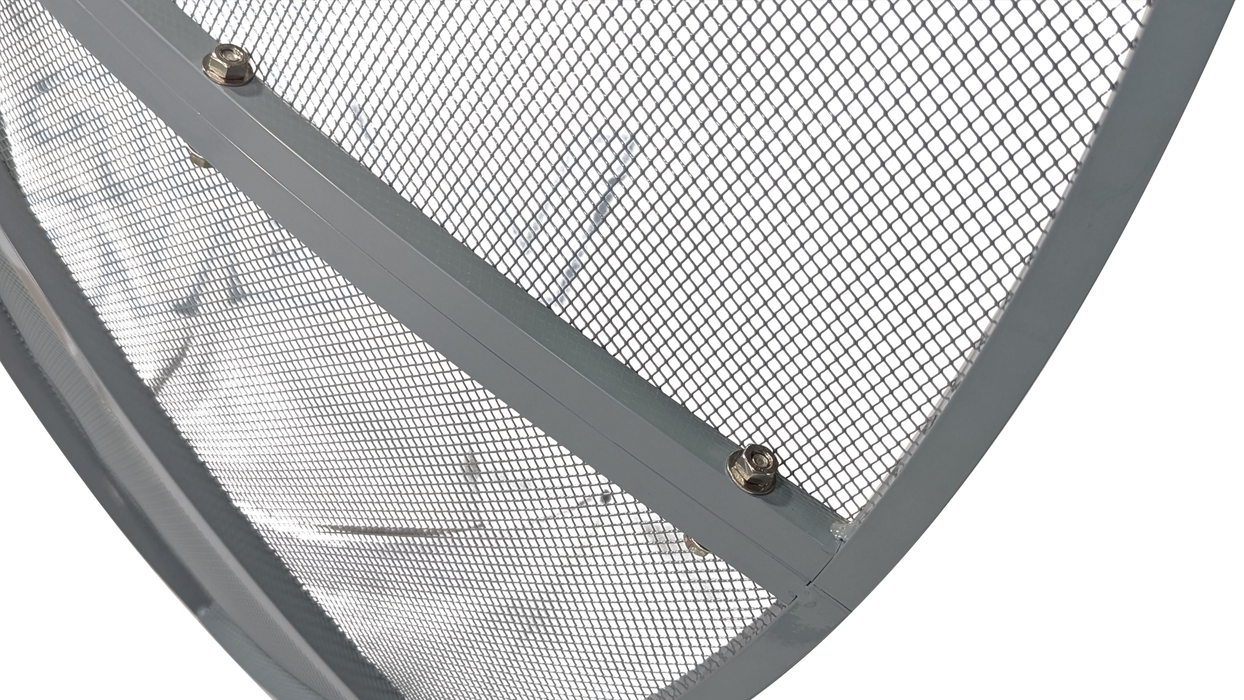

Mesh reflector is made of square 3mm holes. (3x3mm) Excellent tradeoff for wind-load reduction and reflector efficiency.
Electrical specifications:
Frequency range (MHZ) 600 - 10500 (0.6 -10.5 GHz) L-band, S-band, C-Band, half the X-band Instantaneous bandwidth.
Polarization + - 45° (90° V or H)
Polarization: Linear L and/or R, Circular L and/or R, using 90° Hybrid Coupler Not Included
Gain(dBi) 15 Low / 27 Mid / 32 High Bands, 37+ dBi @10.4GHz (est)
Half-power beam width(°) Low Band: 14 – 22 V & H
Half-power beam width(°) Mid Band: 7 - 9 V & H
Half-power beam width(°) High Band: 3 - 5 V & H
Front-to-back ratio(dB) ≥25 AVG
Impedance(Ω) 50
VSWR ≤1.6:1 / 1.4:1 avg
Maximum input power(W) 200-500 Freq Dependent
Lightning protection DC Ground
Mechanical specifications

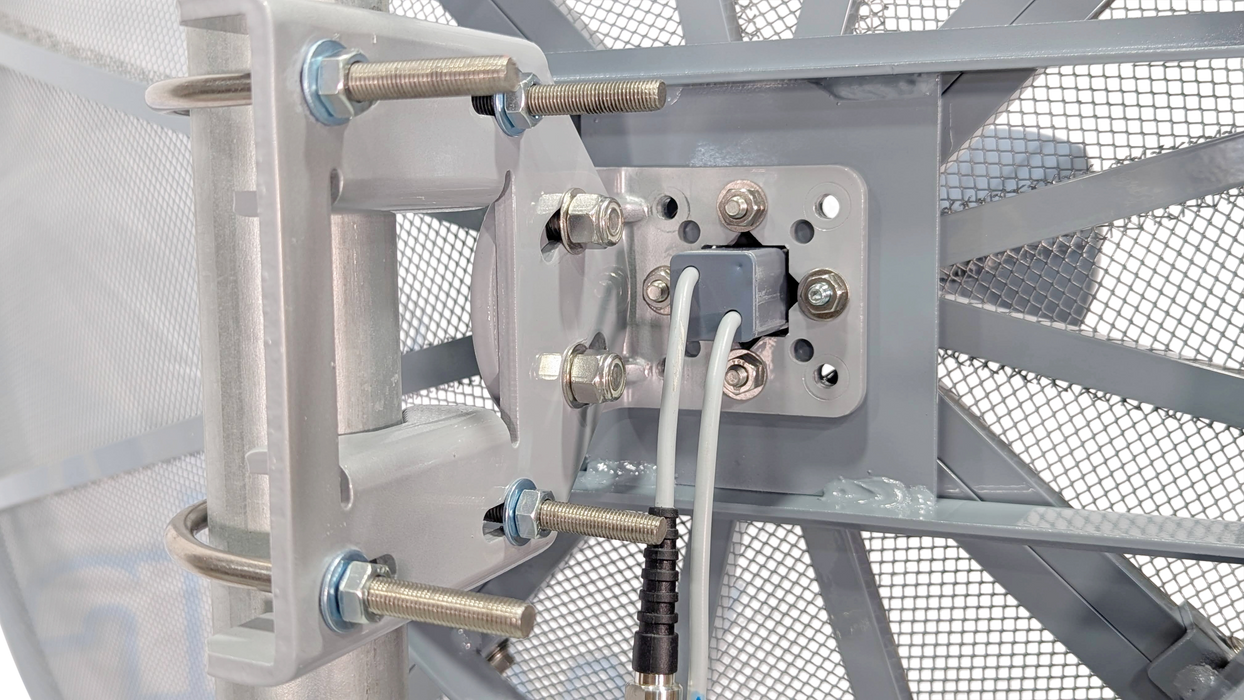

Connectors 2x N-female
Dimensions (in / mm) 48 / 120cm
Dimensions, boxed (in / mm) 26x26x10 / 66x66x25
Antenna weight (lb / kg) 12.5 / 5.7 w/bracket
Packing weight (lb / kg) 17.5 / 7.9
Wind loading area (sqr ft / m) (data not yet detrmined)
Rated wind velocity (mph / kph) 150 / 240
Wind Load @ Rated Velo. (lb / kg)

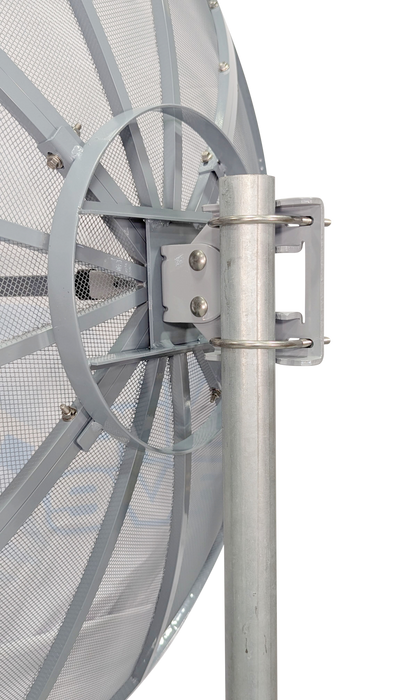

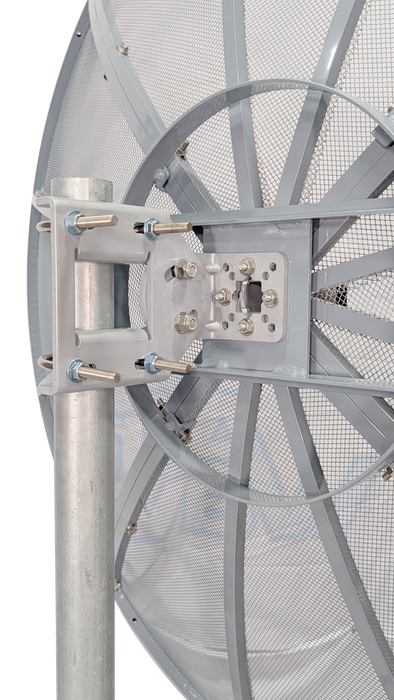

Mounting mast diam. (in / mm) 1.5-2.8 / 38 - 70
Reflector material Aluminum 3x3mm square Mesh
Reflector Finish: Electrostatic Powder Coat
Radome material: molded ASA Anti UV
Antenna Reflector color Black
Water resistance IPX Weather rated.
Operating temperature (℃ / F) -40 to +60 / -40 to +140
