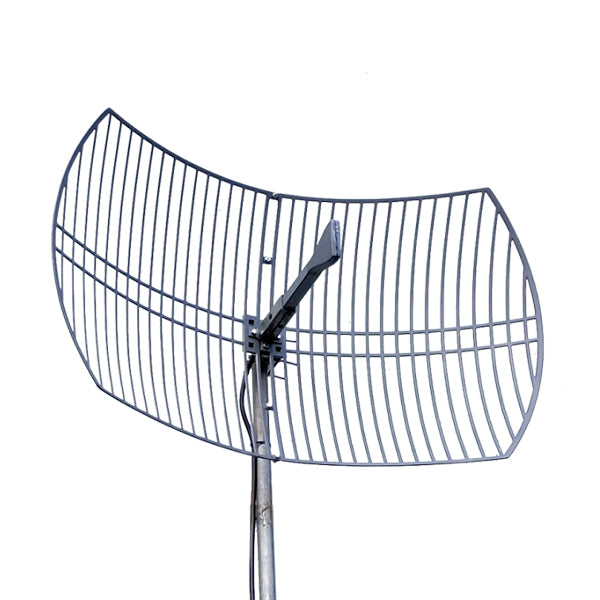

This antenna works for all popular and expanded WiFi bands including 802.11b 802.11g 802.11n 802.11ax 802.11y 802.11j 802.11a 802.11h 802.11ac 802.11p 802.11be Wifi-6E WiFi 7



Technical Specs
Frequency Range (GHz) 2 - 7 (11GHz Feed Horn)
Polarization Vertical or Horizontal
Gain (dBi) 22 Low / 24 Mid / 27 High
Half-power Beam Width (°) Low Band: 12 Horiz, 10 Vert
Half-power Beam Width (°) Mid Band: 7 Horiz, 6 Vert
Half-power Beam Width (°) High Band: 4 Horiz, 3 Vert
HFront-to-back Ratio (dB) 20 AVG
Impedance (Ω) 50
VSWR 1.6:1 / 1.4:1 AVG
Max Input Power (W) 100
Lighting Protection DC Ground
Connector N- Female
Dimensions (in / mm) 24x39x16 / 60x99x40
Dimensions, Boxed (in / mm) 20x25x4 / 51x63x10
Antenna Weight (lb / kg) 5.3 / 2.4 with bracket
Packing Weight (lb / kg) 7.2 / 3.3
Rated Wind Velocity (mph / kph) 130 / 209
Wind Load @ Rated Velo (M / K) 150 / 68
Mounting Mast Diam. (in / mm) 1.5-2.0 / 40-50
Reflector Material Aluminum
Reflector Finish Electrostatic Powder Coat
Radome Material ASA Anti UV
Antenna System Color Flat Gray
Water Resistance IPX Weather Rated
Operating Temperature (°C / °F) -40 to +60 / -40 to +140
Country of Origin Made In U.S.A. w/ US & imported parts
