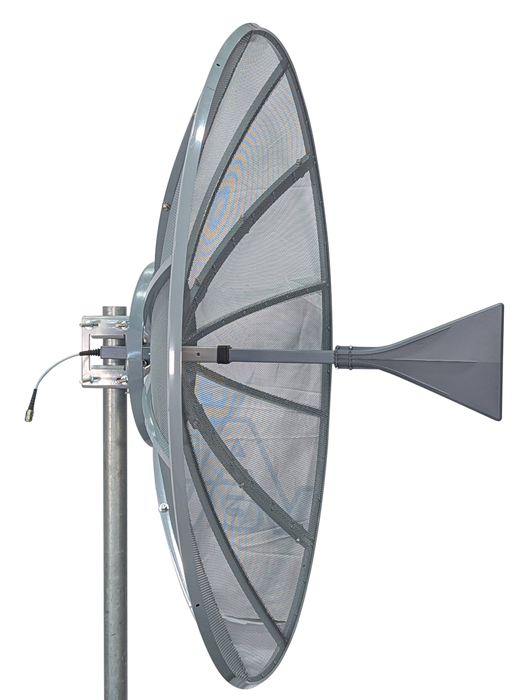

Extremely directional high gain parabolic antenna with a single polarization feed horn. Ultra Wide band UWB continuous , Instantaneous bandwidth. A first in the industry for an UWB affordable dish antenna.

Excellent for terrestrial cellular data links or home user HotSpot modems or WiFi links including the latest 6Ghz WiFi. Amazing number of uses including all the ham radio bands in this range, 902, 2402, 3456, 5700.

Space signals at the 1.4 GHz ranges with amazing performance yet affordable cost. Featuring a patented LPDA printed feed horn with in/out adjustment only needed to maximize 5.5GHz or 650 MHz areas.

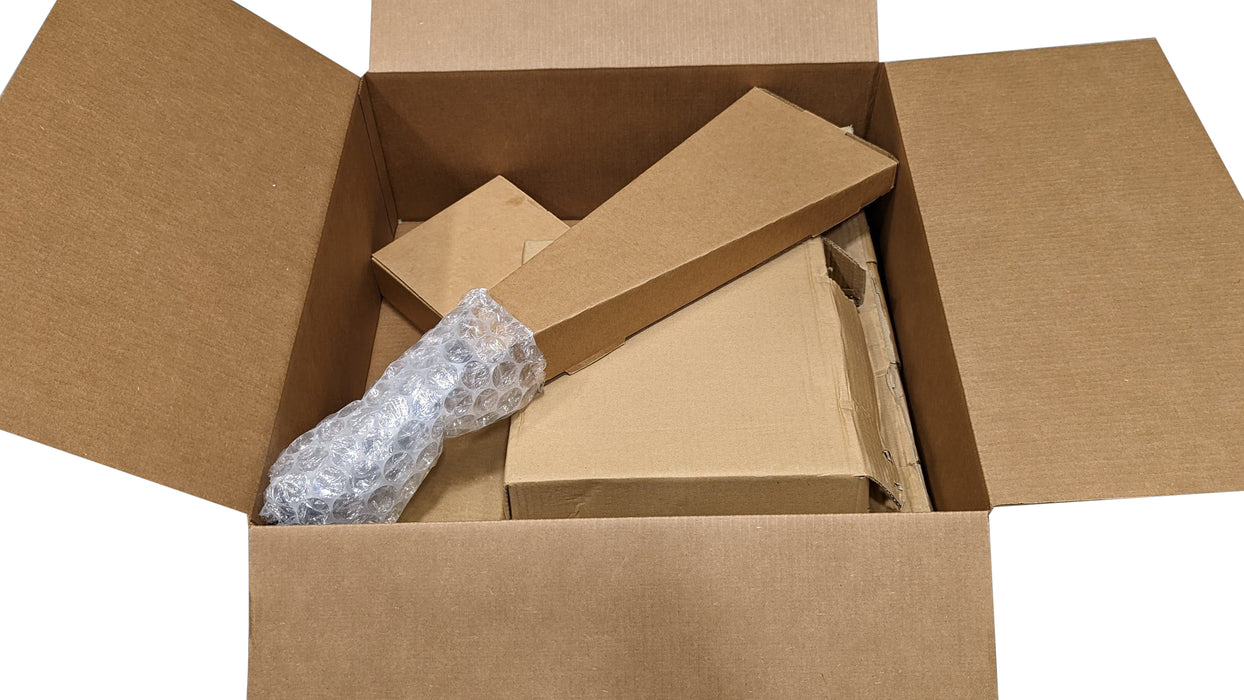

This antenna was designed with low cost shipping in mind. The 4 petals and other parts fit a compact 26x26x9" box. It assembles in 20-30 minutes and it is ready to work. The super sturdy and lightweight dish can be left installed all year.

Designed and produced  Antenna World, Inc, and W4AWI
